The 590A Drive goes from 35A to 720A
PN: 590AD-00-000 (590AD/00/000)

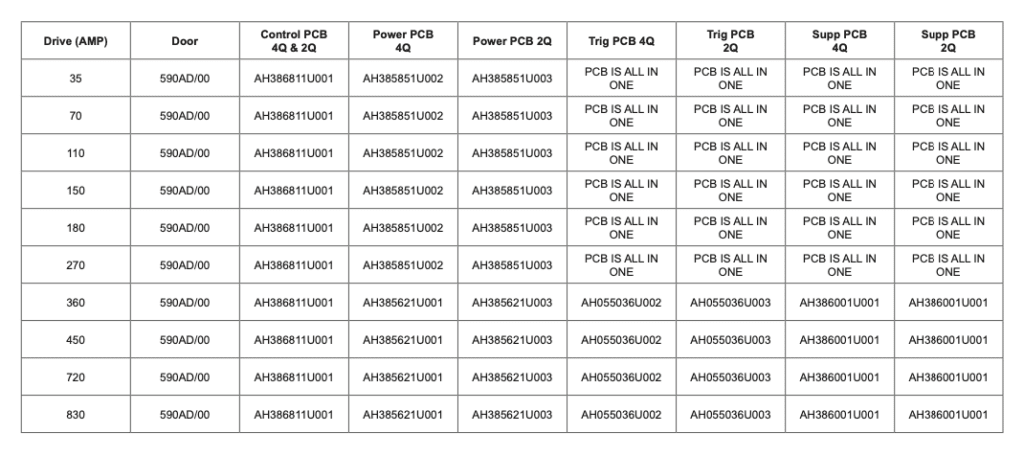

PART NUMBERS FOR THE MAIN PCBS IN THE 590A DRIVE
PLEASE NOTE THAT THESE BOARDS MAY HAVE A ‘T’ IN THE PART NUMBER, WHICH MEANS THE BOARD HAS NOT BEEN TESTED

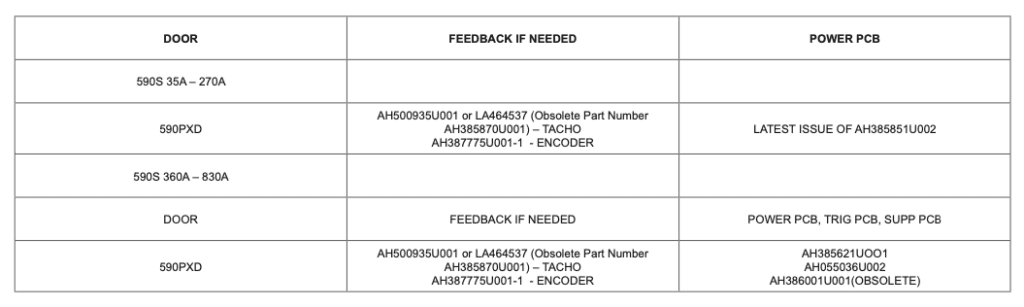

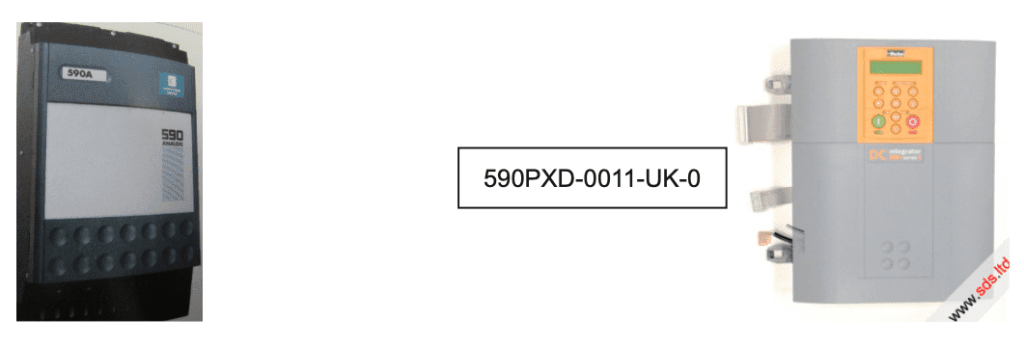

The 590PXD, is a digital door which easily connects to the 590 Stack via pop-out Hinges and push-in ribbon cables. However this Door does not include Analogue Tacho/Encoder Feedback board, this should be ordered separately.

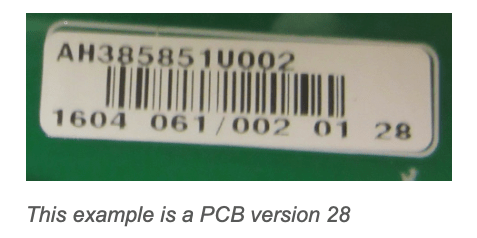

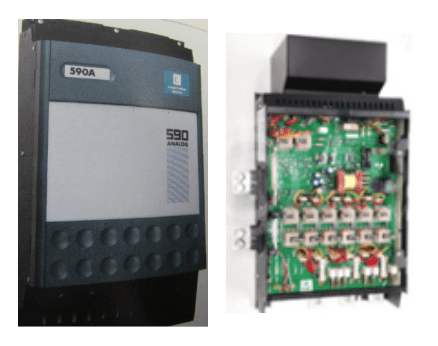

To upgrade to a 590PXD you will have to check the power board issue/Version number, the issue/version number is located on a smaller sticker on the board see below an example of this;
To upgrade to a 590AD to 590PXD
(35A – 270A) the power board of the drive with an issue below 24 will needed to be replaced with the latest issue.
PARTS NEEDED FOR AN UPGRADE

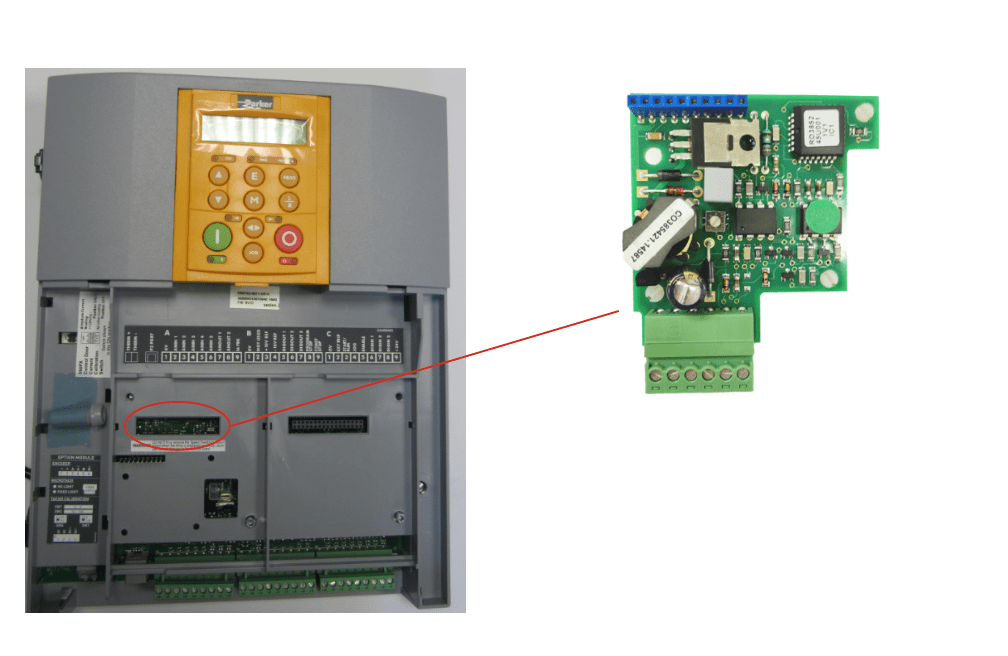

This is the AH387775U001-1 Wire Ended Encoder FeedBack Board, you can in the picture where it fits.
This is the AH500935U001 or LA464537 (Obsolete Part Number AH385870U001) Analogue Tacho Feed Back Board, you can in the picture where it fits.

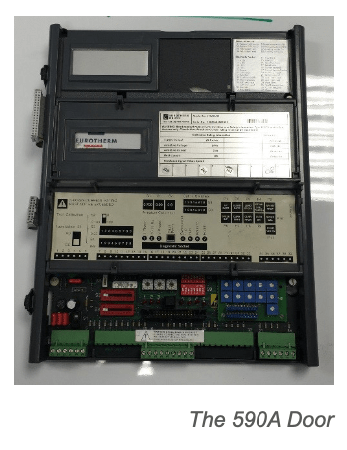

The control PCB for the 590A door is AH36811U001.

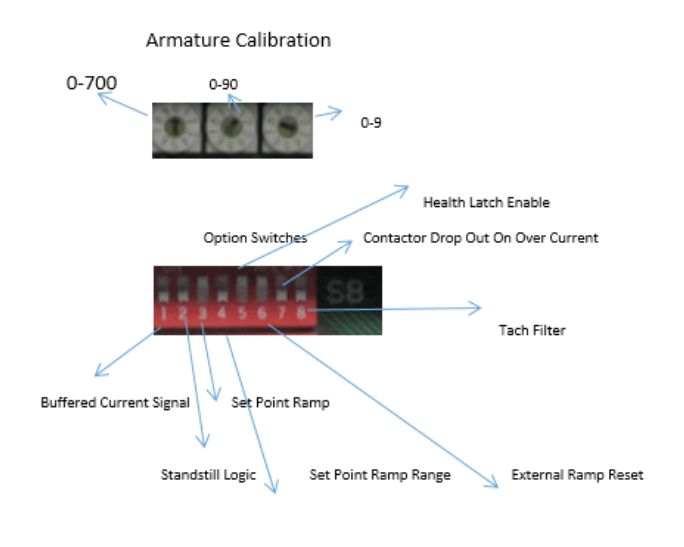

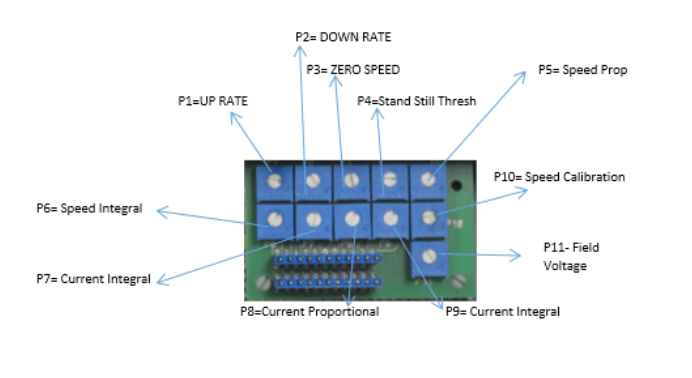

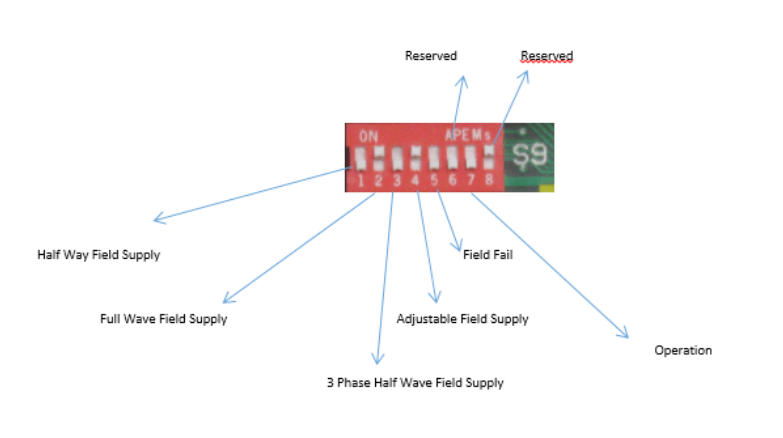

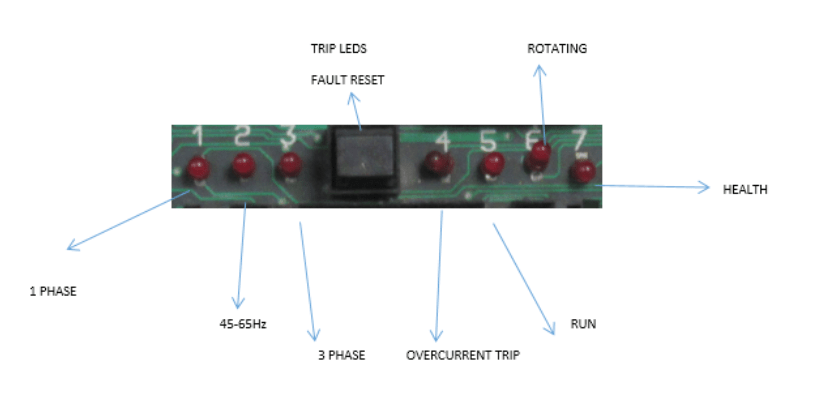

Drive settings can be configured from the board shown below. These pots have P Numbers and each have different functions.
